Car loading on arrival at home floor

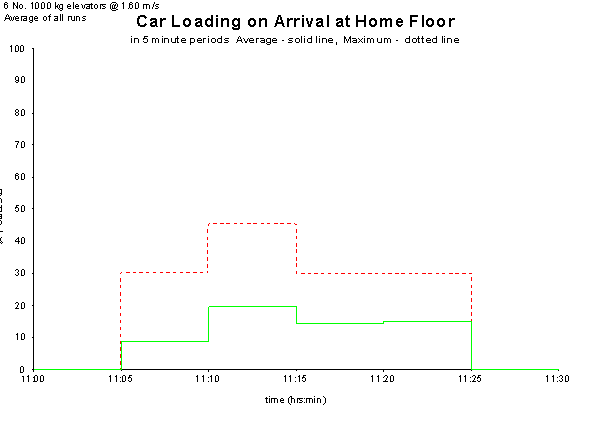

Car Loading on Arrival at Home Floor shows how full the elevator cars are at the end of a round trip. This is especially relevant during down-peak traffic periods. The lower line on the graph indicates the average loading over each five-minute interval, while the upper line represents the highest loading observed during that interval.

You can view this graph for any individual run or as an average across all runs.

The right-hand side y-axis (persons) is only shown when Elevate determines that all elevator cars have the same capacity and all passengers have identical mass values.

For double-deck elevator systems, this graph refers only to the loading in the lower car.
